Flash Memory: The Core Driver of Modern Storage Technology
2025-04-17

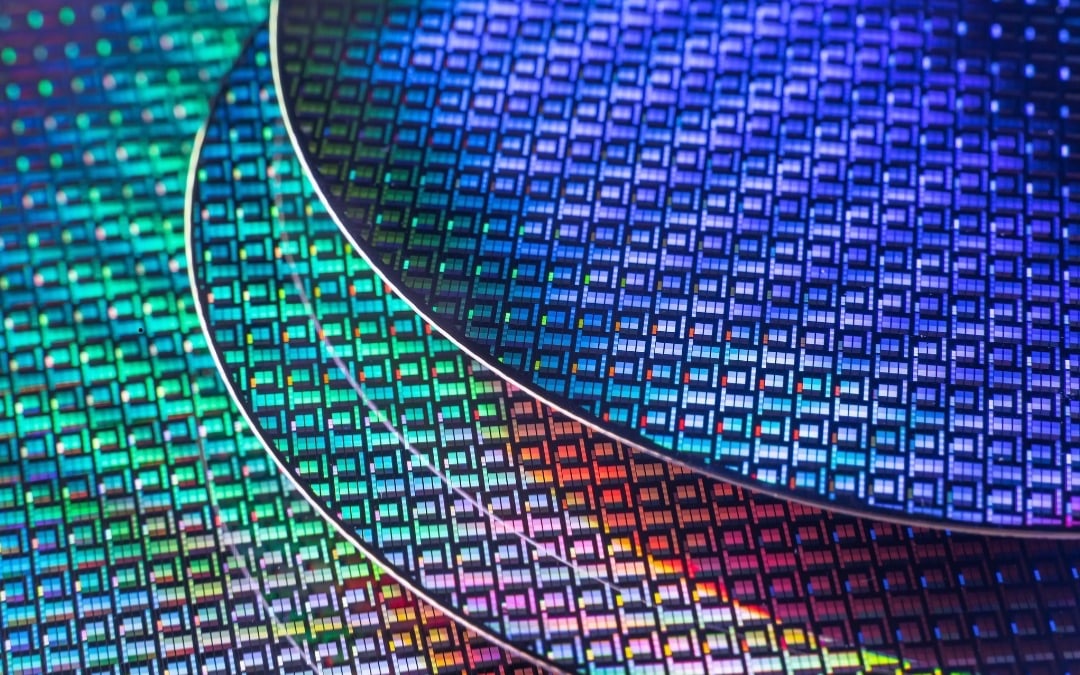

In the digital transformation wave, non-volatile memory chips have become the core components of electronic devices, with NAND Flash memory dominating due to its high density, low power consumption, and rewritable characteristics. As the "data warehouse" for solid-state drives (SSDs), embedded systems, and mobile devices, the technological evolution of Flash memory integrated circuits (ICs) directly determines data access efficiency and cost.
Detailed Explanation of Flash Memory
Flash memory is a non-volatile storage technology widely used in SSDs, mobile devices, embedded systems, and more. Its core advantages lie in stable data storage and high-speed read/write capabilities. With continuous technological advancements, Flash memory ICs are evolving toward higher density, lower power consumption, and lower costs.
Flash memory ICs are primarily divided into two types: NAND and NOR. NAND Flash is renowned for its high density and fast erase/write capabilities, making it suitable for large-capacity storage. In contrast, NOR Flash excels in fast read capabilities and high reliability, often used for code storage. NAND Flash uses tunneling effects for erase and write operations, while NOR Flash employs hot electron injection.
In recent years, the rise of 3D NAND technology has significantly improved storage density. By vertically stacking memory cells, 3D NAND achieves higher storage capacity per unit area while reducing manufacturing costs. Additionally, the introduction of multi-level cell (MLC), triple-level cell (TLC), and quad-level cell (QLC) technologies has further enhanced storage efficiency.
Comparison of Major Vendors' Products
|
Vendor
|
Representative Series
|
Flagship Model
|
Key Features
|
Application Scenarios
|
|
Samsung
|
990 PRO
|
K9DVGY8J5
|
176-layer 3D NAND, PCIe 4.0 x4
|
High-performance gaming PCs/workstations
|
|
Kioxia
|
BiCS FLASH
|
TH58LJT0T24BA8C
|
162-layer stacking, 1Tb density
|
Enterprise SSDs
|
|
2400 Series
|
MT29F1T08EMCBBJ4
|
QLC technology, up to 8TB capacity
|
Data center cold storage
|
|
|
Western Digital
|
WD Black SN850X
|
SDPSN8X0T-00DWX0
|
112-layer 3D NAND, 7GB/s read speed
|
Content creation devices
|
|
YMTC (Yangtze Memory Technologies)
|
Xtacking 3.0
|
YMTC PE310
|
128-layer domestic architecture, 50% faster I/O speed
|
Consumer-grade SSDs
|
Latest Developments and Strategic Layouts in Flash Memory
By 2025, the global flash memory industry has entered a critical phase of "post-Moore era" technological development. SK Hynix has pioneered the mass production of 450-layer 4D NAND using atomic layer deposition (ALD) technology, reducing cell spacing to 8nm and achieving a single-chip capacity exceeding 4Tb. Samsung Electronics introduced the industry's first "compute-in-memory" chip by integrating logic controllers and memory cells in a 3D stack, improving AI inference energy efficiency by 5 times. YMTC's Xtacking 4.0 technology achieved a wafer-level bonding precision of 0.8μm, with a yield of over 90% for 256-layer products and a monthly production capacity expanded to 250,000 wafers.
In terms of market structure, the newly merged entity "WDCX" (Western Digital-Kioxia) holds a 35% global market share, focusing on enterprise QLC markets. Micron has shifted toward hyperscale data centers, with its 1Tb PLC (5bit/cell) chips achieving over 40% market share in cold storage. Notably, TSMC entered the 3D NAND foundry market with its CoWoS-R packaging technology, providing customized storage solutions for clients like Apple and NVIDIA.
Future Technological Evolution Directions
1. Layer Breakthroughs and New Material Applications: Laboratory tests have confirmed the feasibility of 600-layer NAND, with hafnium-based high-k dielectric materials replacing traditional silicon oxide, potentially extending cell lifespan by 10 times. Kioxia's ferroelectric NAND (FeNAND) prototype demonstrates write speeds at the 1μs level, potentially disrupting existing storage architectures.
2. New Paradigm of Compute-Storage Integration: Samsung's "memory-centric computing" architecture embeds AI operators into NAND controllers, enabling in-situ processing of TB-level data on edge devices. Intel is advancing memory pooling solutions under the CXL 3.0 protocol, supporting unified memory addressing across nodes.
3. Sustainable Development Transformation: EU regulations require a 50% reduction in NAND carbon footprint by 2030. Major manufacturers are achieving this through three pathways:
① hydrogen reduction processes replacing energy-intensive silicon purification
② self-healing algorithms extending chip lifespan to 100,000 write/erase cycles
③ biodegradable packaging materials with a 95% recycling rate.
Conclusion
As the core of modern storage technology, Flash memory ICs continue to push performance boundaries through innovation and strategic market layouts. In the future, with the maturation of 3D NAND technology and the widespread adoption of QLC technology, Flash memory ICs will play a critical role in more fields, providing robust support for digital transformation.
