Mastering Power Amplifiers: Types, Trends, and Tips for Selection

2025-03-20

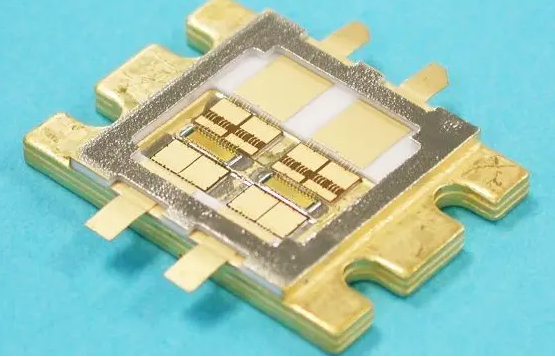

Power amplifiers (PA) are essential core components in electronic devices, widely used in wireless communication, audio systems, RF signal processing, and other fields. Their primary function is to amplify the power of the input signal to a level sufficient to drive the load. With technological advancements, the types and performance of power amplifiers have been continuously optimized to meet the demands of various scenarios. This article will start with the basic principles of power amplifiers and provide a detailed introduction to their classification, popular models, development trends, and selection considerations.

Basic Principles of Power Amplifiers

A power amplifier, in simple terms, is an electronic device that amplifies the power of an input signal. The working principle of a power amplifier involves using transistors or other semiconductor devices to amplify a small input signal into a high-power output signal. Its core function is to convert the energy from a DC power supply into the energy of an AC signal, while minimizing distortion and energy loss as much as possible. Depending on the operating state, power amplifiers can be divided into two major categories: linear amplifiers and switching amplifiers. Linear amplifiers achieve signal amplification by continuously adjusting the operating state of the transistor, while switching amplifiers achieve high-efficiency energy conversion by rapidly switching the transistor between conducting and cutoff states.

Classification and Features of Power Amplifiers

Power amplifiers can be classified into several types based on their operating mode: Class A Amplifier, Class B Amplifier, Class AB Amplifier, Class C Amplifier, and Class D Amplifier.

Class A Power Amplifier: This is the simplest type, where the transistor is on throughout the entire signal cycle. It offers good linearity and low distortion, making it suitable for high-fidelity audio applications. However, its efficiency is low (typically 20%-30%), and it generates significant heat and power consumption.
Class B Power Amplifier: This type of amplifier operates only during the positive or negative half-cycle of the signal, achieving higher efficiency (about 50%-70%). However, it suffers from crossover distortion. To mitigate this issue, a push-pull configuration is often used. For example, the classic Class B audio power amplifier chip LM3886 is widely used in audio systems for its high efficiency and low distortion.
Class AB Power Amplifier: Combining the characteristics of Class A and Class B, Class AB amplifiers have a conduction time greater than half a cycle. They offer higher efficiency (40%-60%) and lower distortion. They are widely used in audio amplification and medium-frequency power amplification. A classic example is the TDA7294, which is widely used in audio systems for its high efficiency and low distortion.
Class C Power Amplifier: Primarily used for high-frequency power amplification, Class C amplifiers have a short operating cycle and the highest efficiency (over 80%). However, they produce significant distortion and typically require filtering circuits to remove distortion.
Class D Power Amplifier: These amplifiers use Pulse Width Modulation (PWM) technology, with transistors operating in a switching state. They offer extremely high efficiency (over 90%) and small size, making them suitable for portable audio devices and wireless communication. Although early Class D amplifiers had higher distortion, modern technology has significantly improved their performance. Examples include Texas Instruments' TPA3116D2 and Navis' ultra-low EMI Class D audio amplifier chip NS4150B.

In addition to these classifications, power amplifiers can also be categorized based on their application fields. Audio power amplifiers are used to amplify audio signals and typically operate in Class A, AB, or D. They are characterized by low distortion and high linearity, making them suitable for audio systems and musical instrument applications. RF power amplifiers, on the other hand, are used in wireless communication and typically operate in Class C or D. They are characterized by high efficiency and the ability to handle high-frequency signals, making them widely used in RF transmitters and wireless communication devices. For example, the RF power amplifier MRF101AN is suitable for wireless communication and radar systems, offering high efficiency and good high-frequency characteristics.

Development Trends of Power Amplifiers

With the rapid development of emerging technologies such as 5G and the Internet of Things, the power amplifier industry is experiencing unprecedented opportunities for growth. High-frequency, high-efficiency, and high-linearity power amplifiers are becoming the mainstream demand in the market. The emergence of new materials, processes, and structures has provided more possibilities for performance improvements in power amplifiers. In the future, power amplifiers will develop towards higher frequencies, greater power, higher efficiency, and smaller sizes to meet the growing demands for communication and data processing. Additionally, intelligence, integration, and modularization will become new trends in the development of power amplifiers, bringing more convenience to the design and application of electronic systems.

Selection Considerations for Power Amplifiers

Faced with a wide variety of power amplifiers in the power semiconductor market, how can you choose the right model? Here are a few suggestions that may guide your selection:

Application Scenario: Select the appropriate type based on the requirements of audio, RF, or other fields. For example, choose Class A or AB for high-fidelity audio applications, and Class D for high-efficiency scenarios.
Efficiency and Distortion: Prioritize linear amplifiers with high linearity for high-fidelity audio applications, and switching amplifiers for high-efficiency scenarios.
Thermal Management and Power Consumption: Consider the device's thermal management capabilities and power consumption limits when selecting the amplifier type.
Cost and Performance: Choose the most cost-effective model that meets your performance requirements.

In summary, as a key component in electronic devices, the type and performance of power amplifiers (PA) directly affect the overall performance of the system. By understanding the different classifications and their characteristics, and combining them with actual application needs, you can more scientifically select the appropriate power amplifier. In the future, with continuous technological advancements, power amplifiers will play an increasingly important role in more fields, driving the performance improvement and functional expansion of electronic devices.
