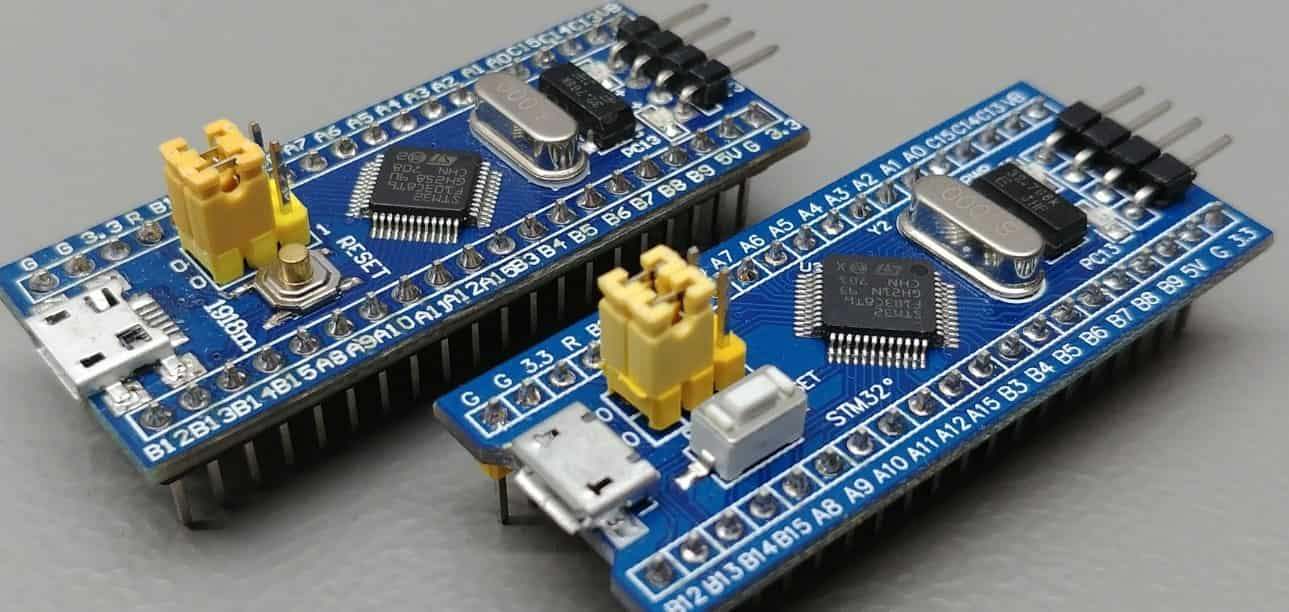

Exploring the Potential of STM32F ARM Microcontrollers
2025-08-05
The STM32F ARM microcontroller series is a range of high-performance, low-power 32-bit
microcontrollers introduced by STMicroelectronics. These microcontrollers are built around the ARM Cortex-M core, which includes various models such as Cortex-M0, Cortex-M3, and Cortex-M4. These cores offer high-performance processing capabilities and support multiple low-power modes, such as sleep and shutdown modes. The STM32F series is widely used in embedded systems, industrial automation, consumer electronics, and the Internet of Things (IoT). The series is favored by developers for its high performance, rich peripheral options, and flexible development tools. The STM32F series also features the following:
microcontrollers introduced by STMicroelectronics. These microcontrollers are built around the ARM Cortex-M core, which includes various models such as Cortex-M0, Cortex-M3, and Cortex-M4. These cores offer high-performance processing capabilities and support multiple low-power modes, such as sleep and shutdown modes. The STM32F series is widely used in embedded systems, industrial automation, consumer electronics, and the Internet of Things (IoT). The series is favored by developers for its high performance, rich peripheral options, and flexible development tools. The STM32F series also features the following:-
Rich Peripheral Interfaces: Offers a variety of peripherals, including GPIO, ADC, DAC, timers, USART, SPI, and I2C.
-
High-Performance Connectivity: Supports multiple communication protocols, such as Ethernet, USB, and CAN.
-
Memory Management: Equipped with different capacities of flash memory and RAM to meet the needs of programs of varying complexity.
-
Ease of Development: ST provides a wide range of development tools, such as STM32CubeMX and STM32CubeIDE.
In addition, The STM32F series of microcontrollers has a wide range of applications in various fields, including:
-
Industrial Automation: Used for factory automation, robot control, sensor interfacing, and data acquisition.
-
Consumer Electronics: Applied in smartphones, tablets, home entertainment systems, digital cameras, etc.
-
Automotive Electronics: Used in engine control units (ECUs), body electronic systems, and in-vehicle entertainment systems.
-
Medical Devices: Such as electrocardiographs, blood pressure monitors, and glucometers.
-
Internet of Things (IoT) Devices: Suitable for smart sensors and smart home gateways.
-
Drones and Robotics: Provides high-performance real-time control and sensor processing capabilities.
Popular STM32F MCU Models
The STM32F series of microcontrollers is divided into several sub-series based on performance and functionality, including high-performance, mainstream, and ultra-low-power series. Here are some popular models and their main features:
|
Model
|
Core
|
Frequency (MHz)
|
Flash (KB)
|
RAM (KB)
|
Features
|
|
Cortex-M3
|
72
|
64-512
|
20-64
|
Balanced performance, suitable for a variety of applications
|
|
|
Cortex-M4
|
168
|
1024
|
192
|
High performance, suitable for complex computing
|
|
|
STM32F429
|
Cortex-M4
|
180
|
2048
|
256
|
With LCD controller, suitable for graphical interfaces
|
|
STM32F746
|
Cortex-M7
|
216
|
2048
|
512
|
High performance, suitable for graphical processing
|
STM32F MCU Selection Considerations
1. Performance Requirements: Choose the appropriate core and frequency based on application needs. For example, the STM32F7 series has higher frequencies and larger storage capacities.
2. Peripheral Requirements: Consider the types and quantities of peripheral interfaces needed in the application. For example, the STM32F429 series has an LCD controller, making it suitable for graphical user interface applications.
3. Power Consumption Requirements: Select models that meet power consumption requirements, especially for battery-powered applications. For example, the STM32L series, which uses advanced energy-saving technologies.
4. Development Tool Support: Ensure that the selected model has good development tool support.
Conclusion
The STM32F microcontroller series, with its high performance, low power consumption, and rich peripheral options, has become a popular choice for embedded system development. Whether for basic applications or high-performance needs, the STM32F series can provide suitable solutions. Its flexible development tools and extensive community support further reduce development difficulty and accelerate time to market. By selecting the appropriate STM32F model and configuration, developers can meet a wide range of application needs, from simple to complex, and achieve efficient and reliable embedded system design.
