How to Choose the Digital Signal Processor (DSP) for Energy Storage Equipment?

2024-07-12

As the global energy structure transitions, energy storage technology has become a key link between renewable energy and the power grid. Electrochemical energy storage systems, especially lithium-ion battery systems, are widely used in various energy storage applications due to their high energy density and rapid response characteristics. However, these systems face a series of challenges in operation, such as battery state monitoring, fault diagnosis, thermal management, and battery balancing. Digital Signal Processors (DSPs) play an increasingly important role in energy storage equipment with their high-speed processing capabilities and optimized algorithms.

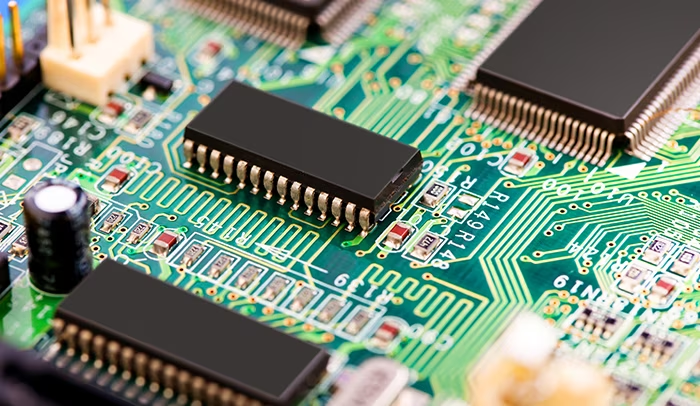

How to Choose Digital Signal Processor (DSP) ?

Role of DSP in Energy Storage Equipment

Digital Signal Processors (DSPs) play a key role in energy storage systems, especially in the management of electrochemical energy storage systems like lithium-ion batteries. With their high-speed digital signal processing capabilities, DSPs provide robust data processing and algorithmic support for functions such as battery state monitoring, fault diagnosis, thermal management, and battery balancing.

Battery State Monitoring and Fault Diagnosis: DSPs collect real-time parameters such as battery voltage, current, and temperature, and use advanced algorithms to assess the battery state, promptly identifying and addressing potential faults to ensure the safe and stable operation of the system.
Thermal Management: Thermal management is key to ensuring the long-term stable operation of batteries. DSPs can intelligently adjust the cooling system according to the battery's operating state, maintaining it within the optimal working temperature range.
Battery Balancing: Battery balancing technology is an important means of extending the life of a battery pack. DSPs precisely control the charging and discharging process between battery cells, reducing inconsistencies between batteries and increasing the overall battery pack's lifespan.
Energy Conversion and Control: DSPs are responsible for managing the operation of bidirectional converters (BDCs) and inverters, optimizing the energy conversion process, reducing energy loss, and improving the overall efficiency of the system.

Trend of Intelligent DSP

With the application of big data and machine learning technologies, DSPs can analyze historical and real-time data, predict energy demand and supply trends, and provide data support for the operation of energy storage systems. Moreover, DSPs can intelligently manage energy storage systems, working better in conjunction with renewable energy sources such as solar and wind power, optimizing the energy collection and storage process, and improving energy utilization efficiency.

DSP Selection Strategy

When selecting a DSP, factors such as computational speed, accuracy, power consumption, integration level, and development toolchain should be considered. Based on application requirements, one can choose between floating-point or fixed-point DSPs, considering the impact of word length on computational accuracy and cost. Low-power DSPs help extend the operating time of the energy storage system and reduce thermal design, while highly integrated DSPs can simplify system design, reducing cost and size. The following points can be referred to simply:

1. Computational Speed and Accuracy

Choose a DSP with the appropriate computational speed and accuracy based on the energy storage system's data processing requirements. Floating-point DSPs offer higher computational accuracy, while fixed-point DSPs have advantages in terms of cost and power consumption.

2. Power Consumption and Integration Level

Selecting a low-power DSP helps prolong the operating time of the energy storage system and reduce thermal design. At the same time, choosing a DSP with a high level of integration can simplify system design and reduce cost and volume.

3. Development Toolchain and Community Support

A mature development toolchain and community support can significantly accelerate development progress and reduce development difficulty, which are important factors to consider when choosing a DSP.

4. Safety and Cost

The safety requirements for energy storage products are extremely high. It is crucial to choose a DSP that has undergone rigorous testing and certification and has a good safety record. At the same time, cost is also an important consideration, requiring a comprehensive assessment of the DSP's purchase cost, development cost, and long-term maintenance cost.

DSP Technology Development and Prospects

Energy storage technology is undergoing significant changes. Digital energy storage technology uses high-frequency power electronic switches to achieve the discretization and digital processing of analog energy flow, which is expected to revolutionize the energy storage industry and achieve widespread commercial application. As the demand for efficient and intelligent management of energy storage systems continues to grow, the application of DSP in energy storage technology may shift from an optional to a standard configuration, especially in high-end and mid-to-high-end energy storage products.

Conclusion

The application of DSP in energy storage equipment not only improves energy storage efficiency but also achieves intelligent battery management and meets various application needs by optimizing energy output. As technology continues to advance and market demand grows, the shift of DSP from an optional to a standard configuration has been driven, and the application of DSP will further expand, bringing new opportunities and challenges for the development of energy storage equipment.
