Charging Management System Of Power Bank

2024-12-16

In today's digital age, the power bank, also known as a portable charger, has become an indispensable part of our daily lives. As a convenient power supply product that can be carried with us, it not only stores electrical energy but also provides continuous power support for electronic devices such as smartphones, tablets, and wearable devices. Power banks have become a must-have electronic product for many households due to their compactness, lightness, multifunctionality, high efficiency, and excellent safety.

Charging management system of Power banks

The working principle of a power bank is relatively simple; it stores electrical energy in built-in rechargeable batteries and provides the required electrical energy to various electronic devices through appropriate voltage and current outputs. These built-in batteries are typically connected to devices such as smartphones and tablets through interfaces like USB, enabling convenient charging functions. However, to ensure the safety, stability, and efficiency of the charging process, power banks employ a complex charging management system internally.

The charging management system is the core part of a power bank, responsible for monitoring and managing the entire charging process. It can automatically adjust the charging current based on the battery voltage, ensuring that the battery is charged under safe conditions. The charging process usually includes stages such as pre-charging, constant voltage charging, and float charging, all of which require precise control and management.

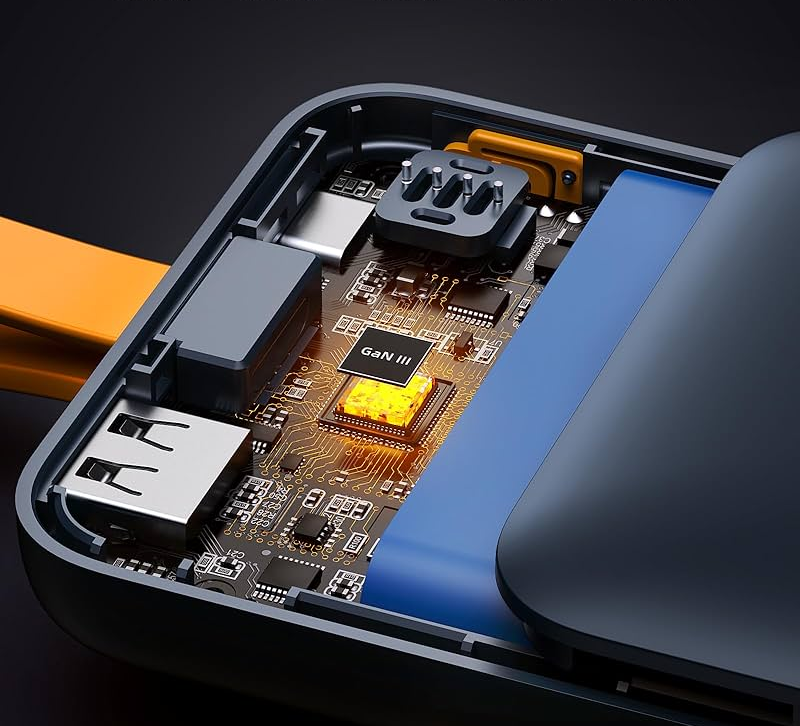

In the charging management system, the circuit board plays a crucial role. It is responsible for adjusting the input and output currents to prevent device damage during the charging process. Additionally, the circuit board is equipped with various safety protection features, such as overcharge protection, over-discharge protection, and short-circuit protection, which ensure the safe operation of the power bank under various abnormal conditions.

Besides the circuit board, the charging management system also includes key components like the battery cell and smart IC. The battery cell is responsible for storing electrical energy and is the core component of the power bank. The smart IC monitors the entire charging process, ensuring its safety and efficiency. It can detect parameters such as battery voltage, current, and temperature in real-time and adjust the charging strategy based on these parameters to achieve the best charging results.

During the charging and discharging process of a power bank, several main circuit structures are involved. The input charging control circuit manages the input of external power to ensure the safety and stability of the charging process. The output DC/DC conversion circuit converts the battery cell voltage to a voltage suitable for various digital devices. In addition, there are charging indicator circuits, battery capacity detection display circuits, and battery protection and smart management circuits, all of which work together to ensure the normal operation and efficient charging of the power bank.

When selecting a power bank, we need to pay attention to factors such as the quality of its energy storage medium (such as battery cells), conversion rate, product compatibility, and size and weight. Excellent battery cells should have high output efficiency, light weight, and be safe and efficient. The conversion rate directly affects the line loss and heat generation of the power bank, so choosing a power bank with a high conversion rate is crucial. At the same time, product compatibility is also important to ensure that the power bank can provide stable power support for various electronic devices.

In summary, the charging management system is a key part of a power bank, responsible for monitoring and managing the entire charging process to ensure its safety, stability, and efficiency. When selecting a power bank, we should pay attention to the performance and safety of its charging management system to ensure reliable power support for our electronic devices.
